Easylift · Tracked aerial platforms
Easylift RA21
Height, outreach and compactness — 20.4m of working height on a 0.86m wide chassis.
Finance ready
Overview
About this machine

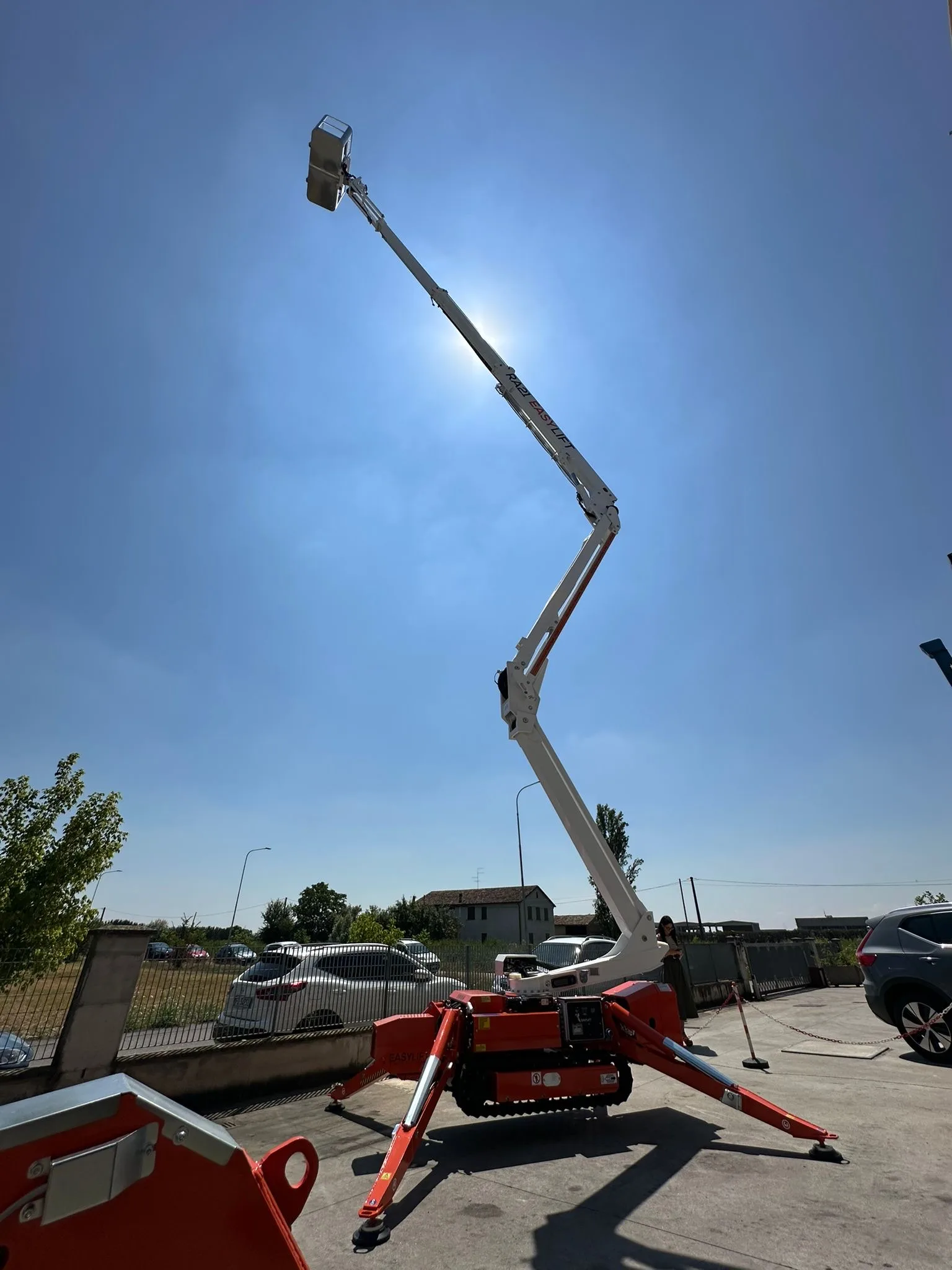

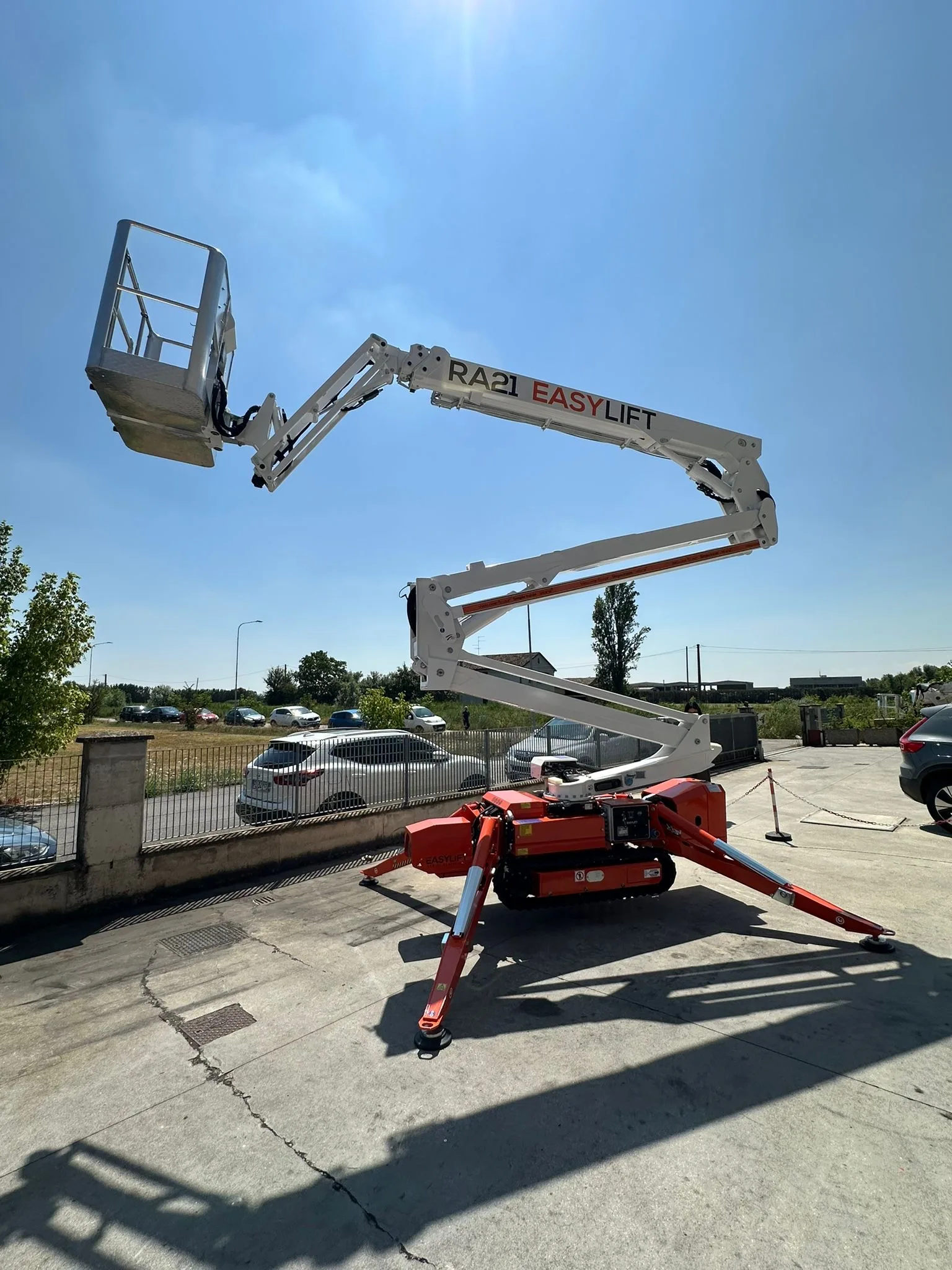

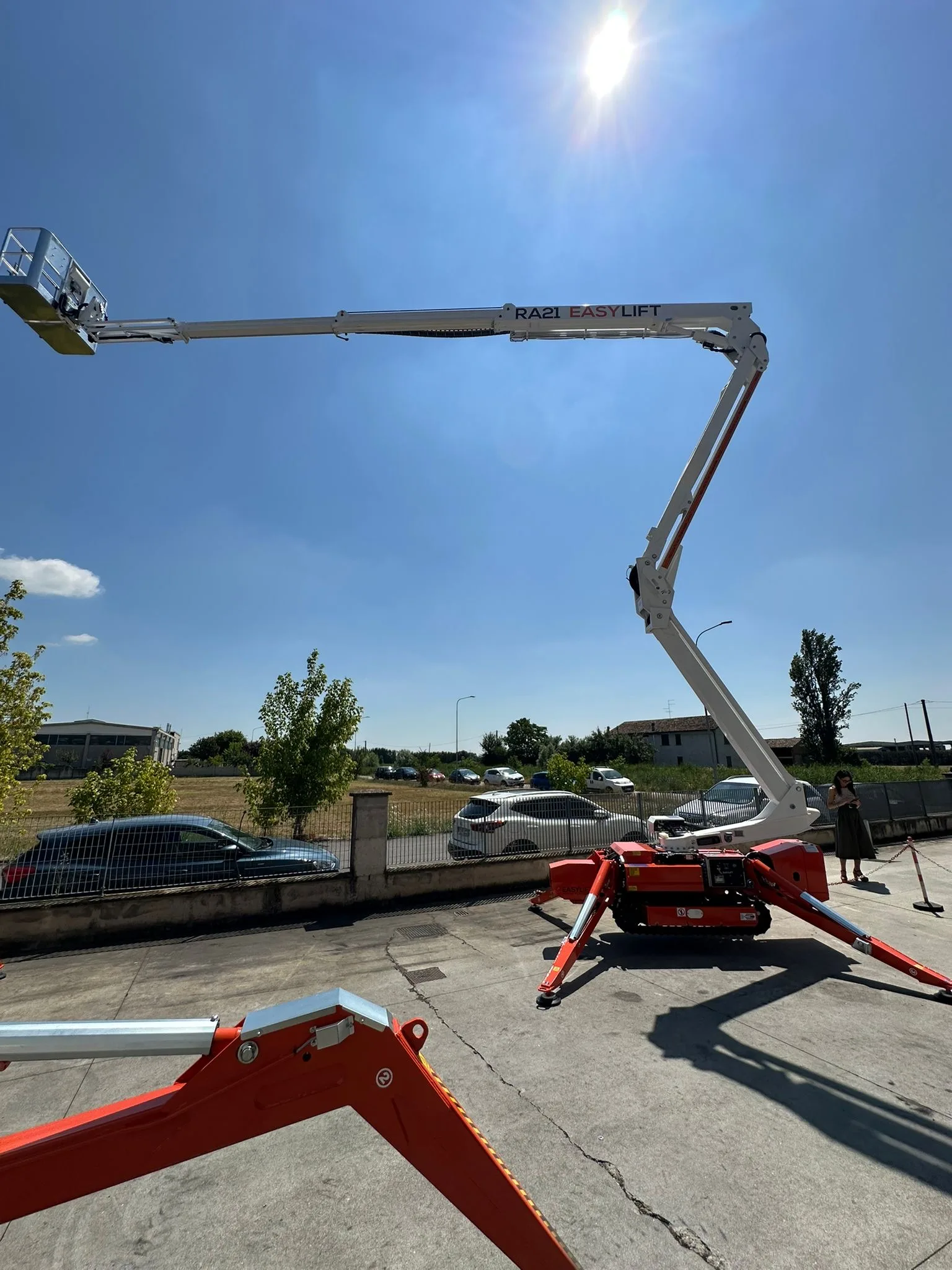

The RA21 reaches a working height of 20.4 metres, a horizontal outreach of nearly 10 metres and an up-and-over clearance of 9 metres. Its configuration includes a double-pantograph arm, a main boom with two extensions and a 1.8 metre jib with 90° rotation, so it stays agile in complex or confined spaces. The basket rotates through 160° and carries an unrestricted 230kg across the turret's 440° rotation, and with no outreach limiter it is intuitive for operators of any experience level. At 4.5 metres long, 0.86 metres wide without the basket and 2,850kg, it trailers easily, passes through standard doors and stabilises within a 2.9 x 2.9 metre footprint.
Specification
Technical detail
Manufacturer specification. Configuration may vary — confirm exact spec at enquiry.
Performance & capacity
- Basket capacity230 kg unrestricted
Dimensions
- Max working height20.4 m
- Max horizontal outreach9.9 m
- Stowed width0.86 m without basket
- Length4.5 m
- Weight2,850 kg
Additional specification
- Up-and-over clearance9 m
- Basket rotation160°
- Turret rotation440°
- Jib1.8 m, 90° rotation
- Stabilisation area2.9 x 2.9 m
- ConditionNew
Finance
How we can fund it
Two routes typically used for machinery of this class. We'll recommend the right structure once we understand the business.
Hire Purchase
Own the asset outright at the end of the term.
- VAT reclaimable up front
- Fixed monthly repayments
- Capital allowances available
- Ownership passes on final payment
Finance Lease
Use the asset with lower initial outlay and flexible end options.
- Payments treated as operating cost
- Rentals offset against taxable profit
- Balloon or minimum term options
- Extend, sell or return at term end
