FSI H40
FSIImage 1 / 4

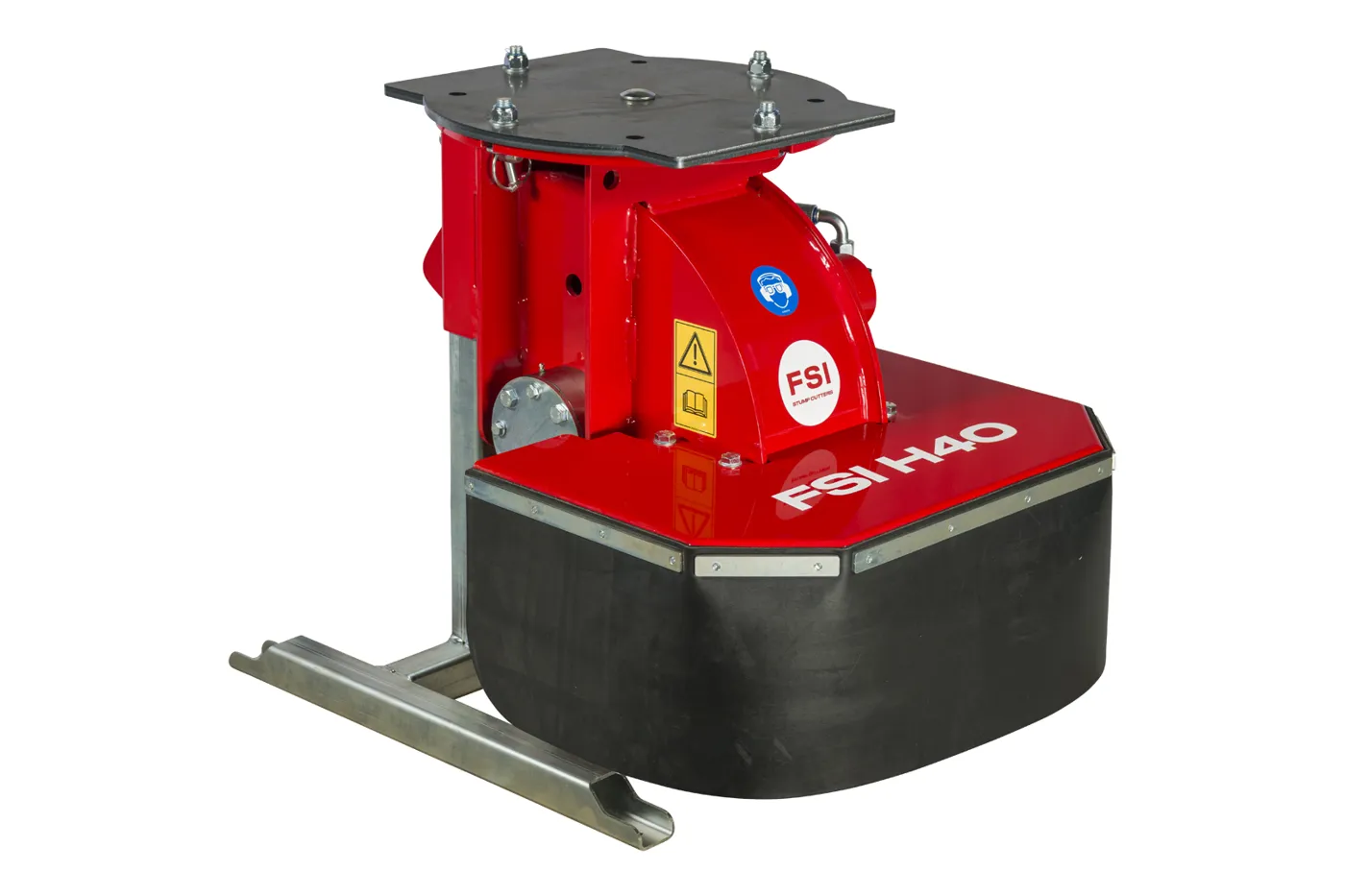

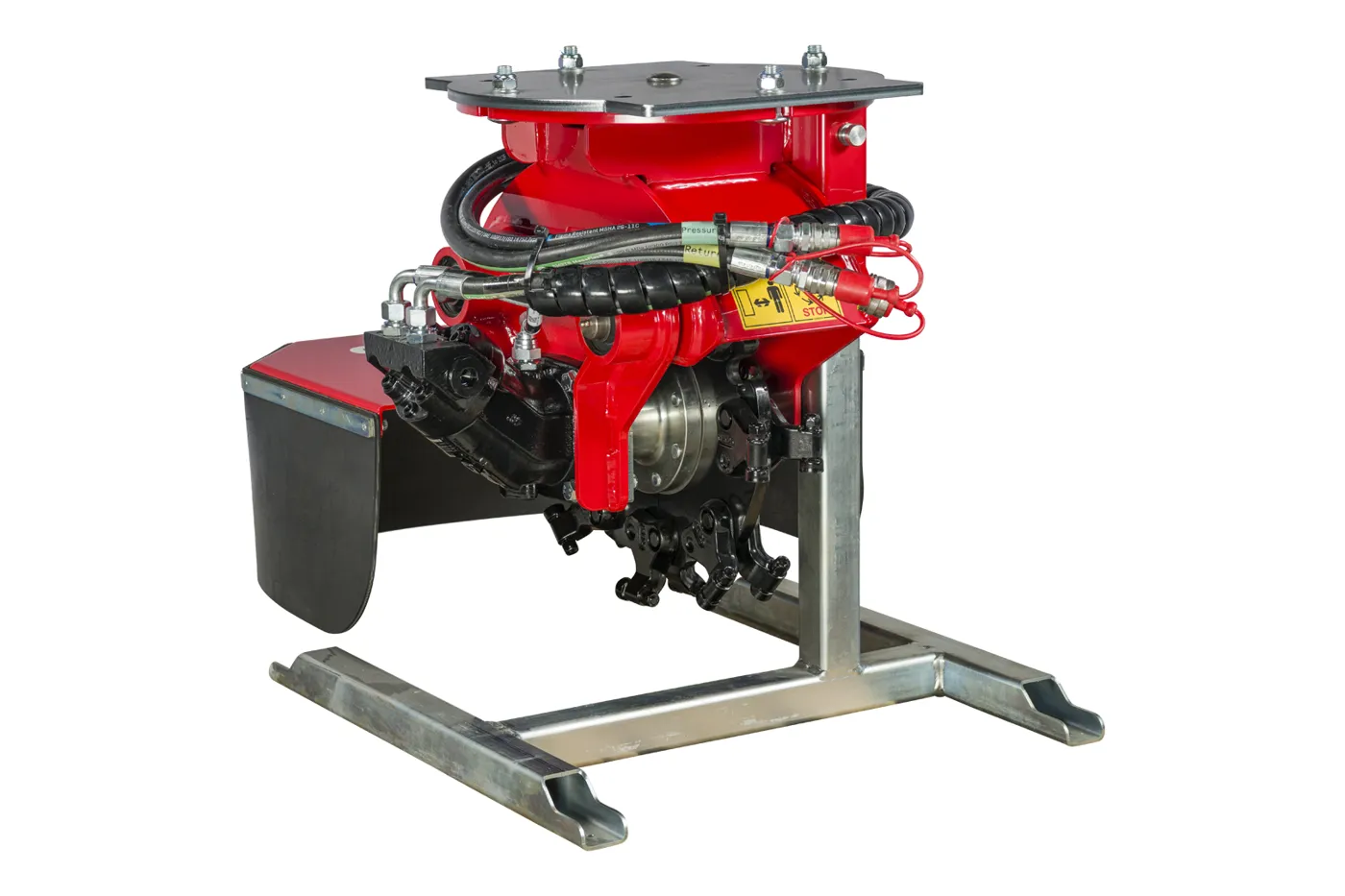

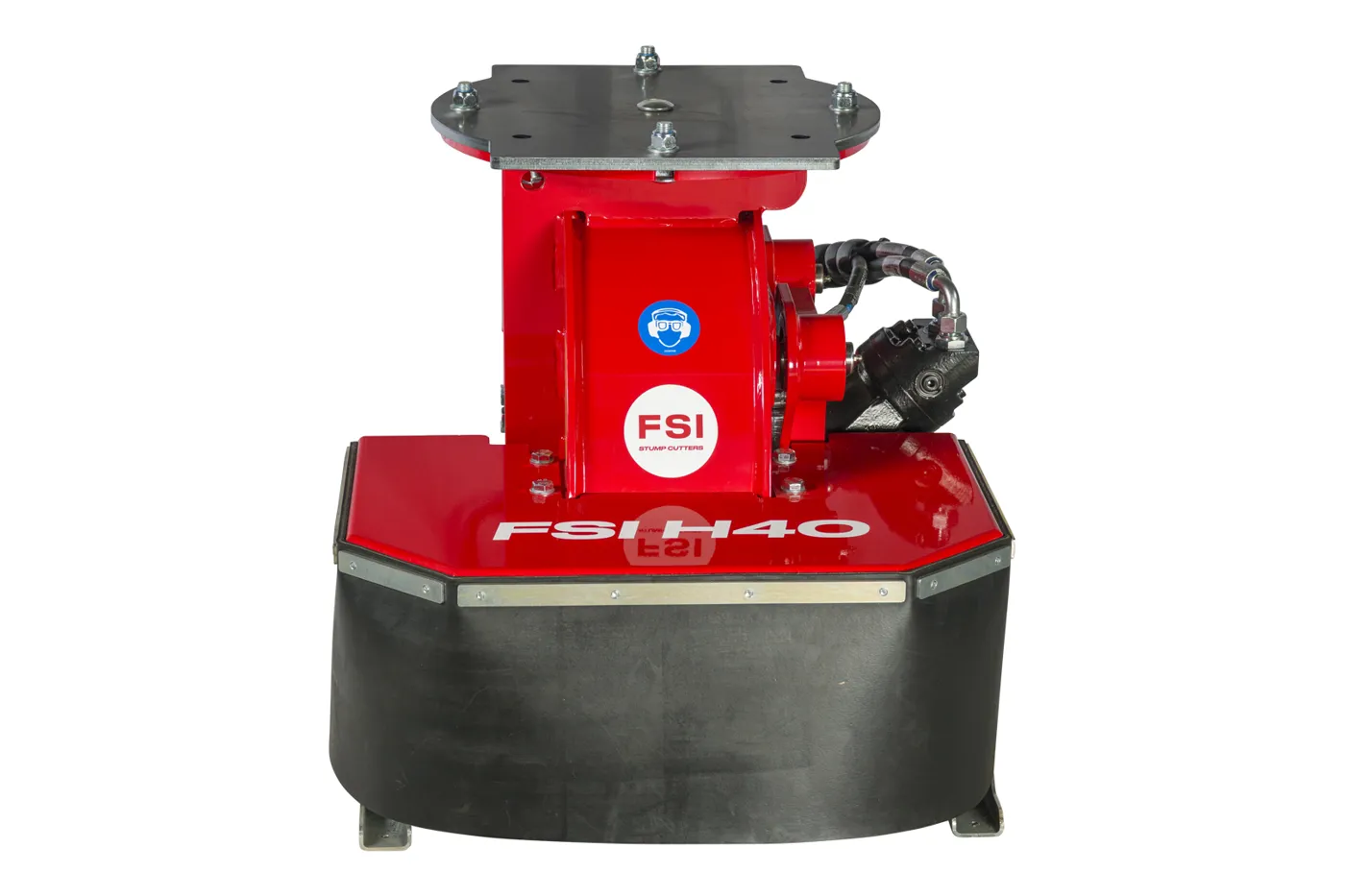

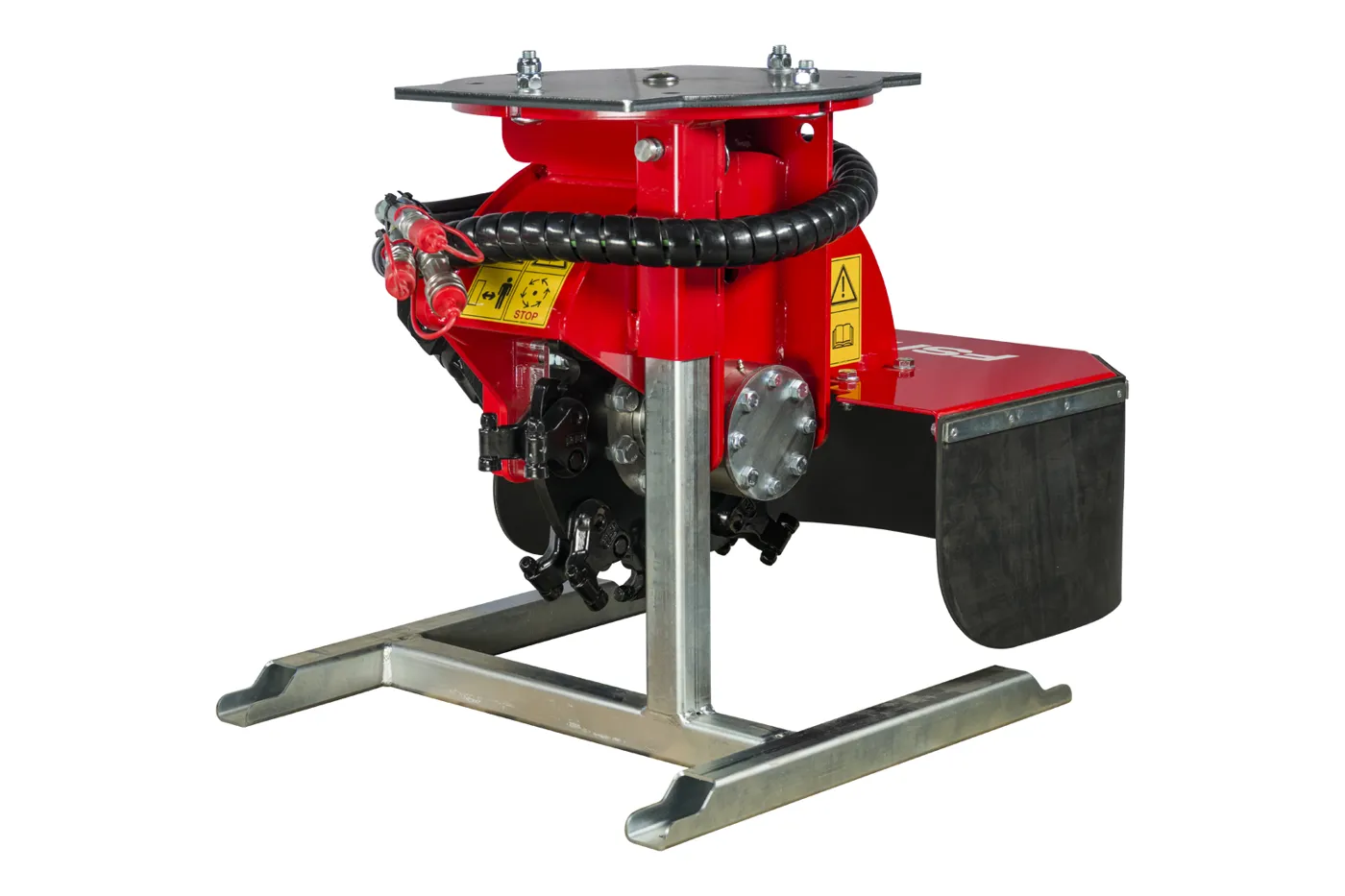

FSI · Hydraulic stump grinder attachment

FSI H40

Stump grinder attachment for articulated mini loaders and similar machines with a recommended size of: 3-7 tons

FSI H40 Finance is arranged by Buckingham Leasing for UK business users, with hire purchase, lease and refinance options on the FSI H40 from £5,000 to £5m, subject to status and credit acceptance.

Finance ready

1–7 year terms — monthly, quarterly or bespoke profile
HP or Finance Lease — take ownership at the end
Minimal deposit and 6-month deferral available

Overview

About this machine

Enhance your tool carrier, excavator, articulated mini loader or similar machinery’s functionality. FSI H40 is a hydraulic-driven stump grinder attachment for 3-7 tons machines.

The stump cutter attachment is ideal for those hard-to-reach areas such as slopes, riverbanks, or behind fences or stone walls.

Top plate

The stump cutters come with an uncoated top plate for welding on a suitable attachment, ensuring the right fit for your excavator.

Simple movement

All operations such as sideways sweep and the up/down movement are executed using the familiar controllers of the excavator.

Heavy load handling

The FSI H40 model is designed with a double row tapered roller bearing system, that can handle heavy radial and axial loads for stable operation and protection of the bearings in the oil motor.

Less strain

A floating motor bracket with integrated vibrations absorbers reduces strain on the motor and bearings.

Two size options

FSI H40 is covered by two variants for oil flow 50-75 l/min or for oil flow 80-110 l/min.

Key features

  • Grinding movement performed via the carrying machine
  • Adjustable cutting direction - great for tight spaces and obstacles
  • Delivered including hydraulic hoses and connectors

Specification

Technical detail

Manufacturer specification. Configuration may vary — confirm exact spec at enquiry.

Powertrain

  • Power requirements18-31 kW / 25-42 hp
  • Supplied with hydraulic connectorsYes
  • Cutter wheel driveDirect Drive

Performance & capacity

  • Oil flow50-75 l/min

Dimensions

  • Recommended Excavator size3-7 ton
  • Length840 mm
  • Width840 mm
  • Height660 mm
  • Weight150 kg / 175 2kg

Additional specification

  • Oil pressure250 bar
  • ConnectionsPressure, Return, Leak return
  • Supplied with hosesYes
  • Diameter470 mm
  • Tooth systemFSI 25
  • No. of teeth16 pcs
  • Max cutting depth5.2 cm per sweep

Financing the FSI H40 with Buckingham Leasing

The FSI H40 is a hydraulic stump grinder attachment from FSI, the Danish manufacturer whose machines are widely used by UK tree and grounds professionals. It suits contractors who already run a mini loader, compact loader or excavator and want to add stump grinding to that carrier without buying a separate powered machine.

Headline figures from the manufacturer: weight 150 kg / 175 2kg, oil flow 50-75 l/min. Always check the latest data sheet with your dealer before ordering.

Ways to fund it

  • Hire purchase: spread the cost over a fixed term and own the FSI H40 at the end.
  • Finance lease: keep capital free and pay for the machine while it earns, with options at the end of the term.
  • Seasonal or stepped payments: shape repayments around busier winter and spring felling periods where lenders allow.
  • Refinance: release cash tied up in machinery you already own to help fund a new grinder.

Things to think about before you buy

  • Access widths and ground conditions on your typical jobs, as they decide between wheeled, tracked, pedestrian or attachment models.
  • Tooth and wear part costs, servicing intervals and dealer support near you.
  • How the grinder will be transported, including trailer weight limits and towing entitlement.
  • Whether new or used stock gives better value for your workload.

We arrange finance for new and used FSI stump grinders from £5,000 upwards, for sole traders, partnerships and limited companies across the UK. Send us the dealer quote and we will come back with clear options in plain English.

Explore more groundscare finance or read what asset finance is and how it works.

Finance

How we can fund it

Two routes typically used for machinery of this class. We'll recommend the right structure once we understand the business.

Hire Purchase

Own the asset outright at the end of the term.

  • VAT reclaimable up front
  • Fixed monthly repayments
  • Capital allowances available
  • Ownership passes on final payment

Finance Lease

Use the asset with lower initial outlay and flexible end options.

  • Payments treated as operating cost
  • Rentals offset against taxable profit
  • Balloon or minimum term options
  • Extend, sell or return at term end
